APO3: Automatic Power Off 3

voltage controlled relay protects vehicle batteries from being discharged by radios...

Home Products Services Order & Track Photo Gallery Contact Presentations

Introduction:

The APO3 is a black box designed to prevent a vehicle battery from being discharged and damaged by a DC load. Typically it is used to switch a radio transceiver off 10 minutes after the vehicle is shut off.

The APO3 is designed for 12 volt vehicle electrical systems with negative ground. It can switch up to 20 amps and carry up to 30 amps. The shutdown voltage can be set to one of four pre-programmed voltages (11.8, 12.1, 12.7, 13.05 volts) using two DIP switches; the shutdown delay can be set to one of four pre-programmed times (0, 5, 10, 20 minutes). The device is housed in a sturdy ABS plastic case.


Specifications:

Dimensions: 3.3" (84 mm) long, 4.75" (121 mm) wide, 1.35" (34 mm) tall
Weight: 5.5 ounces (158 grams) with Anderson connectors
Input Voltage: 7-20 volts DC
Input Current: 1.734 mA @ 12.0 VDC with LED off and relay off
60 mA @ 13.8 VDC with LED off and relay on
61.25mA @ 12.7 VDC with LED on and relay on
Load Current: 30 amps holding, 20 amps switching
Internal Protection: Thermal, Over Current
Case Material: Flame retardant ABS plastic. UL's best flame rating of 94-5VA (case only).
Voltage Set Points: 11.8, 12.1, 12.7, 13.05 volts DC. Selectable by DIP switch.
Time Delays: 0, 5, 10, 20 minutes. Selectable by DIP switch.

back to top

Pricing:

Now you can purchase these products directly through our sister website: Off Grid Options

APO3's are also available from our fine stocking distributors:

APO3: Automatic Power Off 3 (bare wire leads)

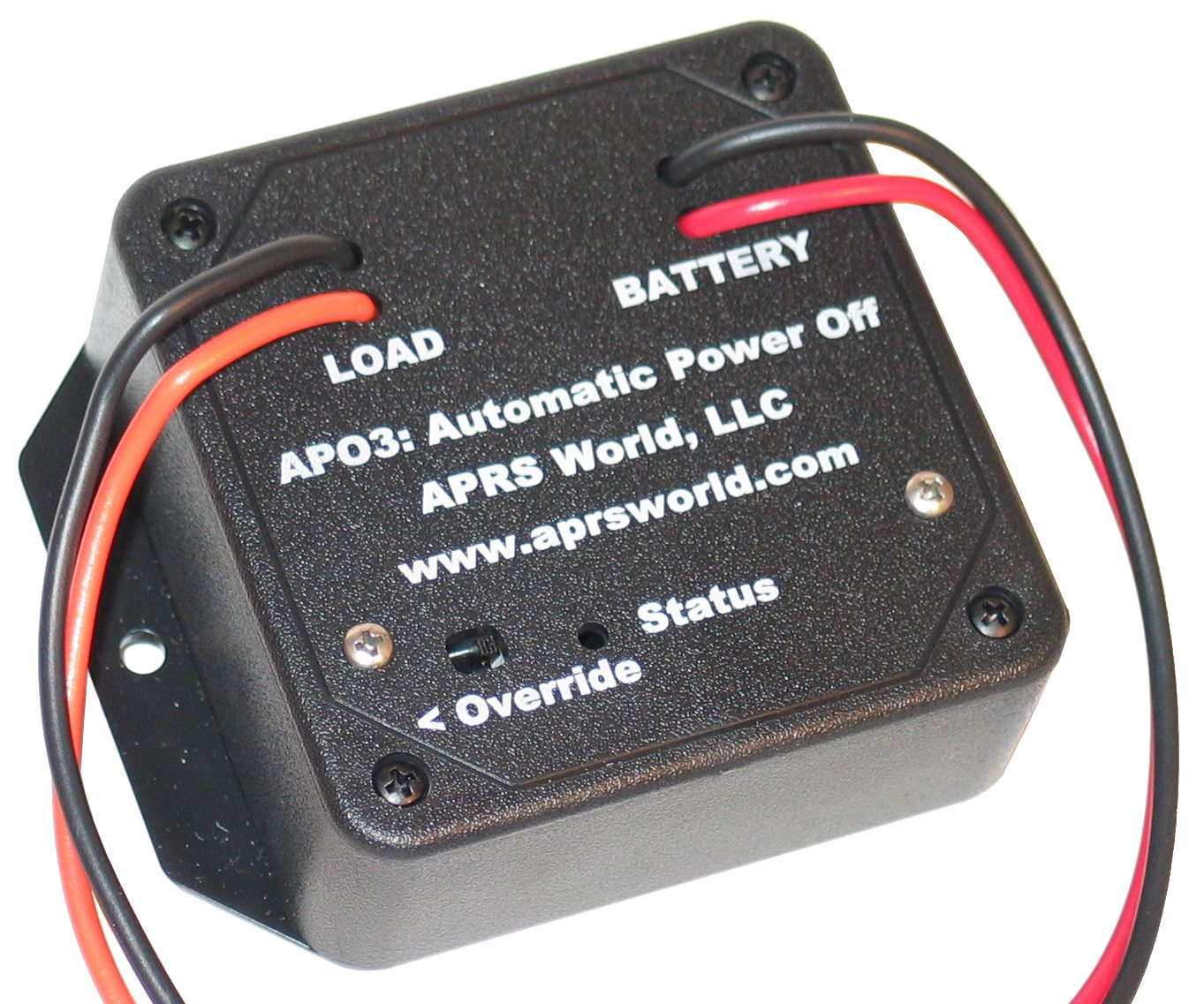

Product Photo
Click on photo to enlarge
US Price: $59.95 USD
Please call us at +1-507-454-2727 to place an order.

Or click here to order online from Off Grid Options .

APO3C with bare wire leads. Packaged in a cardboard box with printed instruction sheet.


Part Number: APRS5000
Shipping Weight: 1.00 pounds
RoHS: compliant
Origin: USA
APO3: Automatic Power Off 3 (powerpole connectors)
Product Photo
Click on photo to enlarge
US Price: $59.95 USD
Please call us at +1-507-454-2727 to place an order.

Or click here to order online from Off Grid Options .

APO3C with Anderson Powerpole 30 amp connectors. 30 amp Anderson Powerpoles will mate with 15, 30 and 45 amp connectors. Packaged in a cardboard box with printed instruction sheet.


Part Number: APRS5001
Shipping Weight: 1.00 pounds
RoHS: compliant
Origin: USA
APO3: Automatic Power Off 3 (OEM radio connector)
Product Photo
Click on photo to enlarge
US Price: $59.95 USD
Please call us at +1-507-454-2727 to place an order.

Or click here to order online from Off Grid Options .

APO3C with OEM T connector. This is the connector that is typically found on the back of mobile amateur radio transceivers. Packaged in a cardboard box with printed instruction sheet.


Part Number: APRS5002
Shipping Weight: 1.00 pounds
RoHS: compliant
Origin: USA

back to top

What It Does and How It Works:

The APO3 is basically a voltage controlled switch. When the vehicle voltage is higher than the APO3 set point, the relay is turned on and power is provided to the load side. When the voltage drops below the APO3 voltage set point and stays there for longer than the time set point, the APO3 relay turns off and power is removed from the load side.

The APO3 has a bright yellow LED to indicate its status and it has a slide switch that can be used to turn the load on regardless of the input voltage.

Using the factory default settings, the APO3 will turn on the load when the vehicle voltage rises above 13.05 volts. This typically occurs within a few seconds of starting the vehicle. The load remains powered as long as the engine is running. When the engine is shut off, the vehicle voltage sinks below 13.05. The APO3 waits until the voltage has been less than 13.05 volts for 10 minutes and then turns the load off.

The APO3 is ideal for use with mobile APRS / AVL stations. It allows the radio to transmit a few position reports after the vehicle is shut off before turning off the radio and GPS. This reduces clutter on the APRS / AVL channel and prevents the vehicle battery from discharging.
