RJ-45 Breakout Board
Home Products Ordering Information Order Tracking Photo Gallery Live Data Sites Contact Information

Kit RJ-45 Breakout Board

The RJ-45 breakout board makes connecting to the Wind Data Logger easy. There are 8 large holes on the circuit board for soldering an anemometer, wind vane, user analog inputs, or anything else to the Wind Data Logger.

Purchasing

RJ-45 breakout board

Click on photo to enlarge
US Price: $8.00 USD
Please call us at +1-507-454-2727 to place an order.

RJ-45 breakout board. Circuit with RJ-45 soldered on.

Part Number: APRS6562
Shipping Weight: 0.10 pounds
RoHS: compliant
RJ-45 breakout board, PVC mounted

Click on photo to enlarge
US Price: $10.00 USD
Please call us at +1-507-454-2727 to place an order.

The kit contains the soldered circuit board and all of the hardware you need to mount it inside a 1.5" diameter PVC pipe.

The following parts are included:

  • 1 x Assembled circuit board with RJ-45 jack
  • 1 x Laser cut PVC disc
  • 3 x Right angle #4-40 brackets
  • 3 x #4-40x1/8" stainless steel machine screws
  • 3 x #4-40x3/8" stainless steel machine screws

The kit takes about five minutes to assemble. You will need a small (#1) Phillips screw driver.

Part Number: APRS6563
Shipping Weight: 0.13 pounds
RoHS: compliant

More Drawings

Note that the currently shipping version only has three right angle mounting brackets and screws.

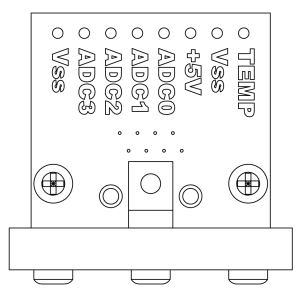

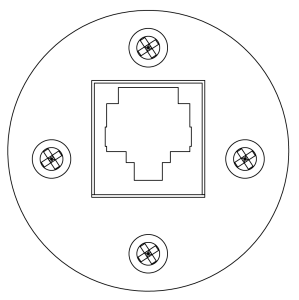

Back view Bottom view Side view
