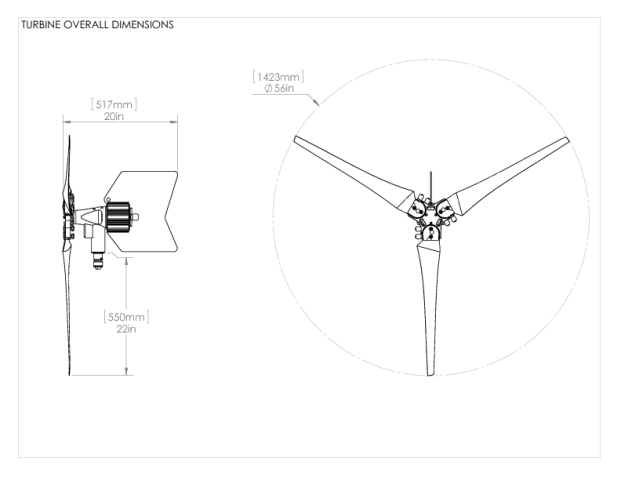

IntroductionThese documents are made available to provide complete technical and integration details for APRS World's WT14 wind turbine. Documents pertaining to all of APRS World's wind turbines are in the WTARPS document archive. If you require additional information, please contact APRS World's applications engineers for additional information. TurbineOverall Dimensions![[Overall Dimensions Drawing Preview]](turbineOverallDims.1.preview.png)

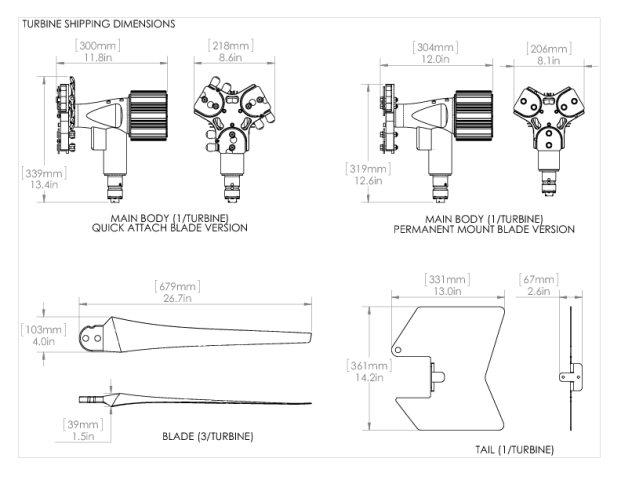

A full size version of this drawing is available as a 60kB PDF document. Component / Shipping Dimensions![[Component Dimensions Drawing Preview]](turbineShipping.2.preview.png)

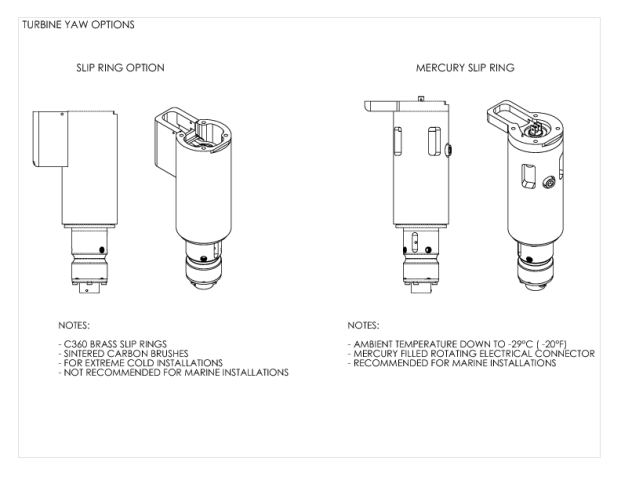

A full size version of this drawing is available as a 100kB PDF document. Yaw Options![[Yaw Options Drawing Preview]](turbineYawOptions.preview.png)
A full size version of this drawing is available as a 44kB PDF document. Bolt On Blades![[Bolt on Blades Drawing Preview]](boltOnBlades.preview.png)

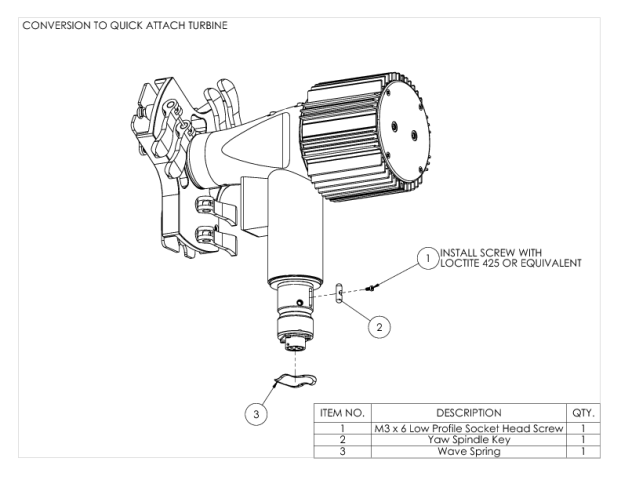

A full size version of this drawing is available as a 62kB PDF document. Quick Connect Conversion Instructions![[QC Conversion Drawing Preview]](qcConversion.1.preview.png)

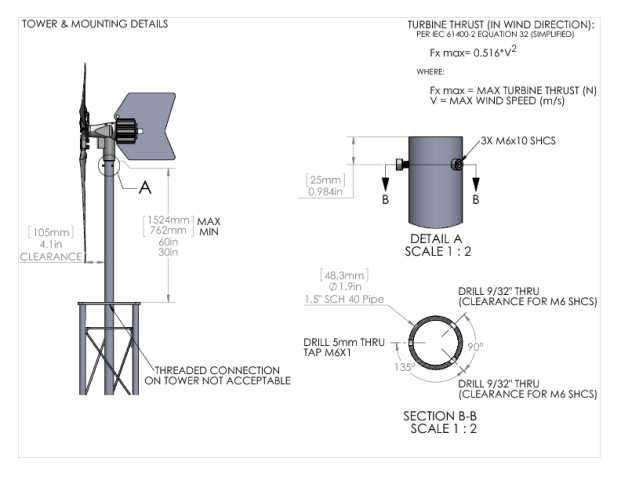

A full size version of this drawing is available as a 61kB PDF document. TowerTower Details![[Tower Details Drawing Preview]](towerDetails.3.preview.png)
A full size version of this drawing is available as a 85kB PDF document. ElectricalOutput Connection Test![[Output Connection Test Drawing Preview]](outputConnectionTest.1.preview.png)

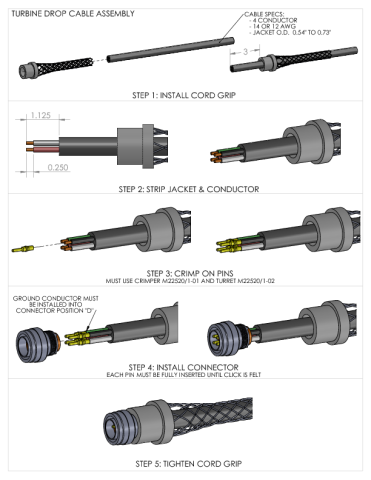

A full size version of this drawing is available as a 210kB PDF document. Output Connector / Drop Cable Assembly![[Output Connector / Drop Cable Assembly Drawing Preview]](dropCableAssembly.2.preview.png)
A full size version of this drawing is available as a 342kB PDF document. |
