The Wind Monitor II is currently at revision level 'c'. Unless noted, all the information below applies to this revision.
Ports

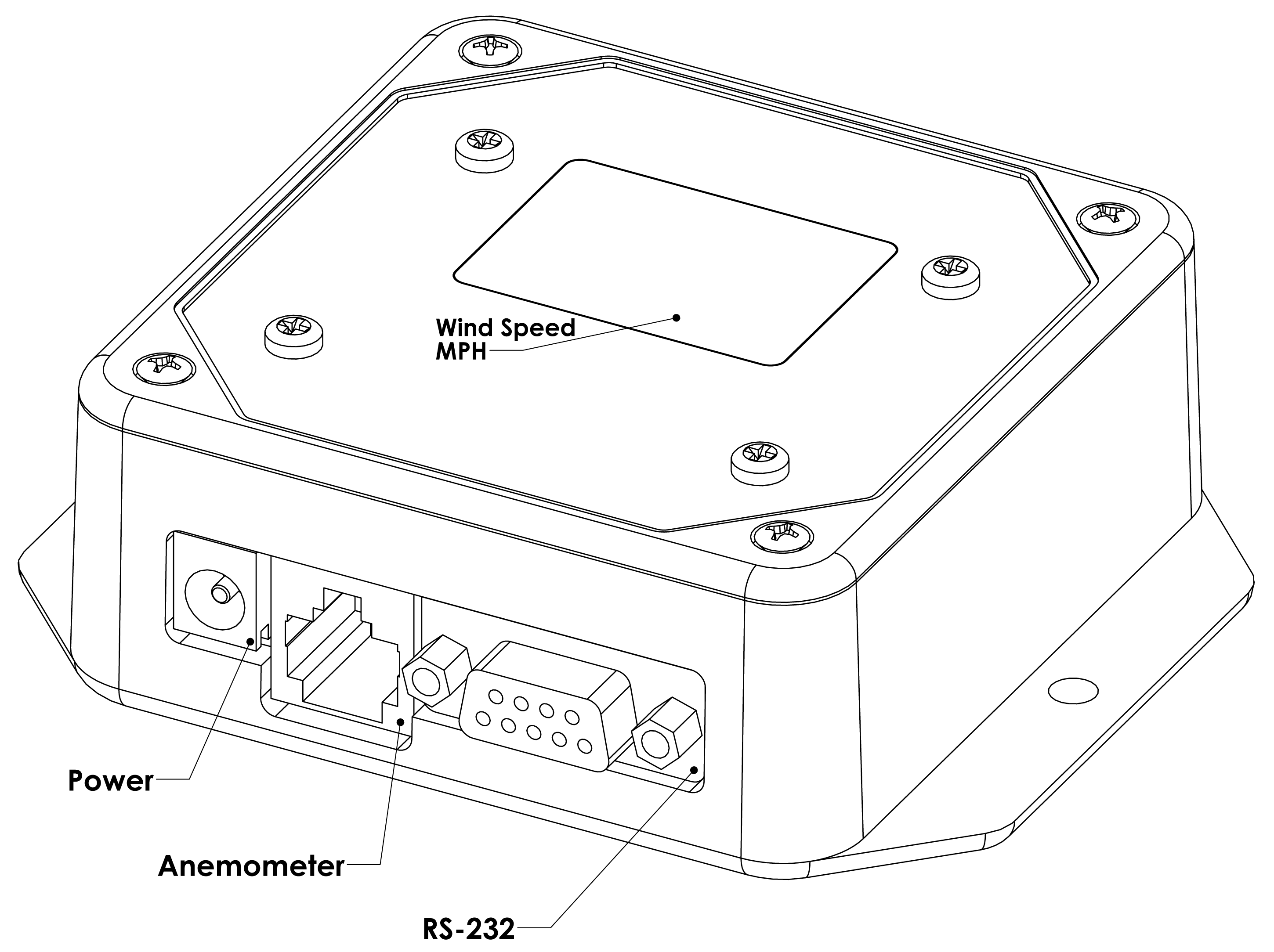

RS-232 version
A larger version of this image is available.

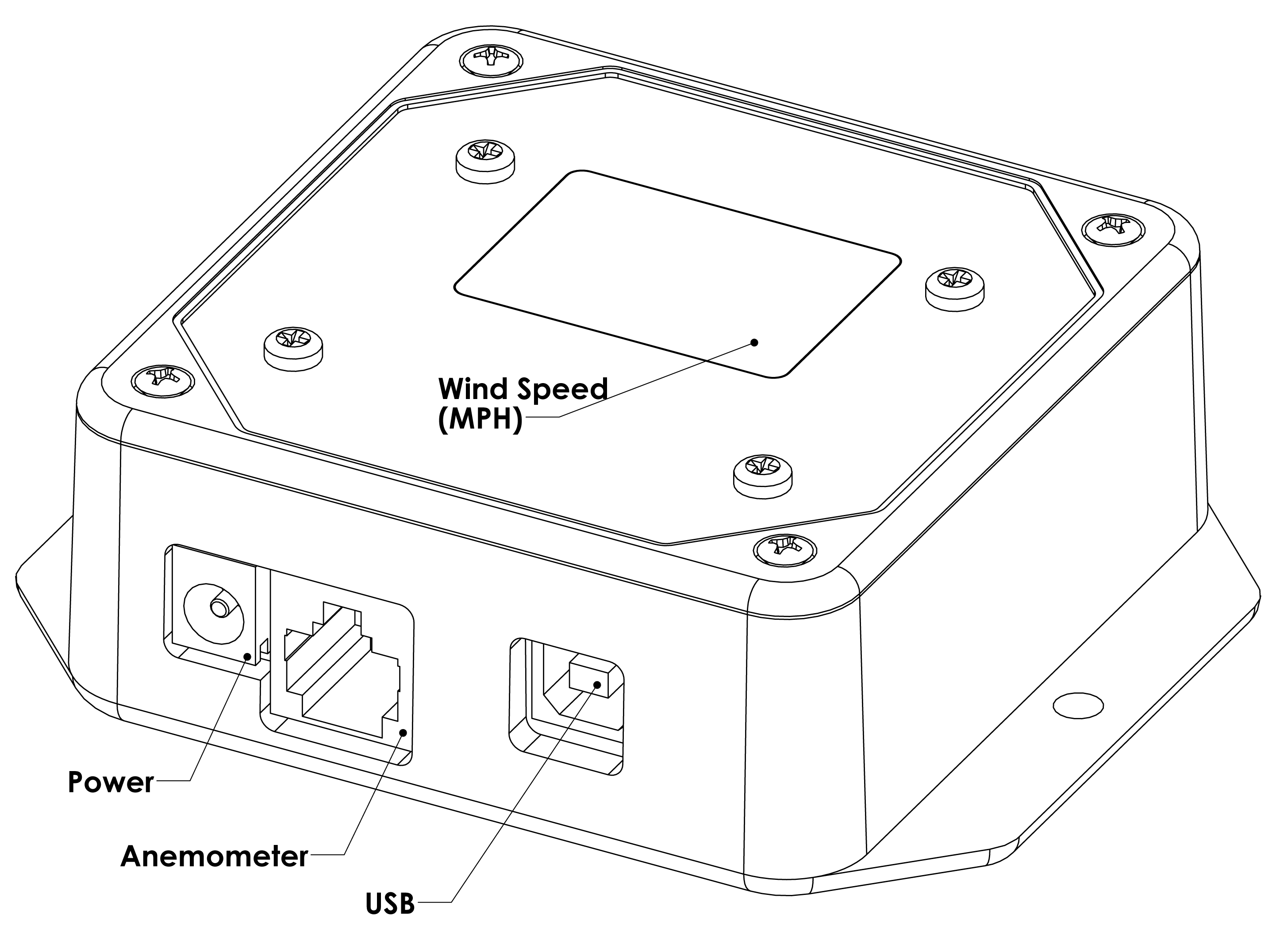

USB version
A larger version of this image is available.
Schematic
The Wind Monitor II schematic drawn in TinyCad, a free schematic capture program.

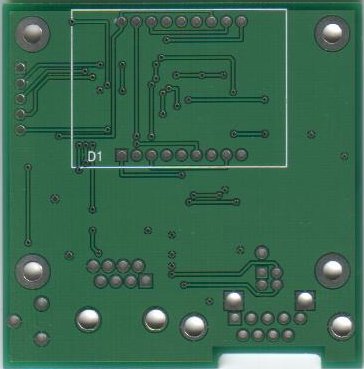

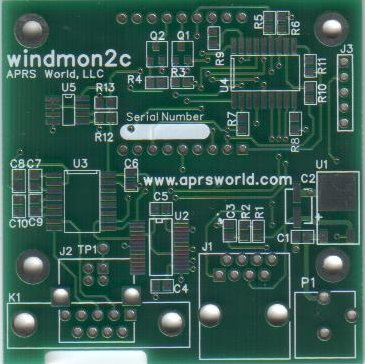

Printed Circuit Board
The Wind Monitor II circuit board is a double sided FR-4 board with plated through holes, solder masked, and silk screen. It has an gold flash finish that is RoHS compliant. The images below show our older immersion tin finished board.
Enclosure
The Wind Monitor II case is an off-the-shelf enclosure Polycase. It is the LP-41F. We CNC mill the various cutouts in the case. Polyester labels are used to mark the product.
|
